SANSUN
Operating Principles
The lower poppet remainsclose by main spring.
Upper puppet remainsclose byIntermedlate spring and product pressure.
Productsprotected by doubleseals. Interspace open toatmosphere.
Technical Specifications
Max.operating pressure:10bar (for DN4°- DN100valves -max.5bar)
Min.operatingpressure:Absolute vacuum
Workingtemperature:-10℃ to120℃(140℃ for shortperiodsor sterlisation) Compressed airpressure:5,5bar-7bar
Airsupplyconnections:R1/8°(BSP)
Materials
Parts in contact with the product:AISI 316L
Otherstainlesssteel parts:AISI 304 Interior
surfacefinish:Ra≤0,8 μm Gasket(standard):EPDM
incompliancewith
FDA 177.2600
Standard Design
Avallablefrom DN40-1.1/2"to DN100-4°. Valves with normally closedpneumatic actuator.
Forged spherical bodies. Compact design. Angular orientation 360°
Judge whetherthe gasket is broken by observing whether the liquid flows out on thebottom of the valve.
Easydisassembly by releasing the clamp.
Wekd connections(mm orinches)
Balanceddesign
and multi-position stainless steel triggle handle
Control: position sensor, C-TOP controller, C-TOP controller(AS-I)

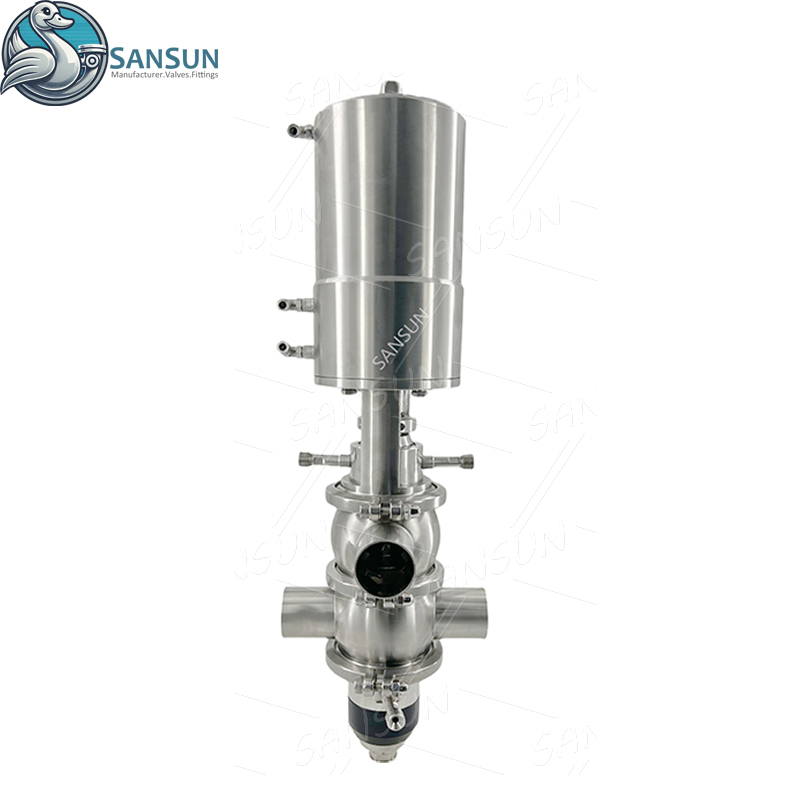

Mixproof Double Seat Valve
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the
manufacturing and time of each process to ensure the quality of products.
Package
